stm32f4xx_matlab_tim.h File Reference

#include "stm32f4xx_hal.h"
#include "stm32f4xx_it.h"
#include "mcu_wrapper_conf.h"

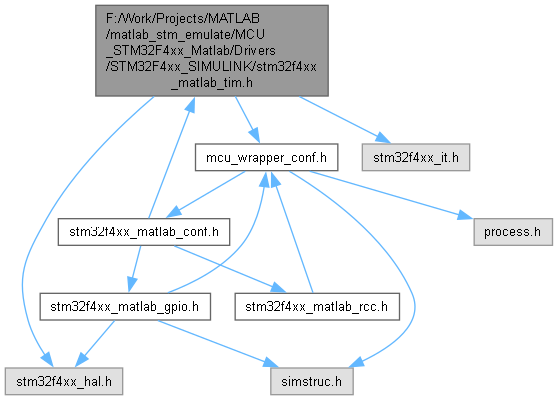

Include dependency graph for stm32f4xx_matlab_tim.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	SlaveChannels
struct	Channels_Sim
struct	TIM_Sim

Macros
#define	TIM_OCMODE_SECOND_SHIFT   (TIM_CCMR1_OC2M_Pos - TIM_CCMR1_OC1M_Pos)
#define	Check_OCx_GPIO_Output(_tims_, _OCx_GPIOx_, _OCx_PIN_SHIFT_)   (_tims_->Channels._OCx_GPIOx_->MODER & (0b11<<(2*_tims_->Channels._OCx_PIN_SHIFT_))) == (0b10<<(2*_tims_->Channels._OCx_PIN_SHIFT_))
#define	Check_OC1_GPIO_Output(_tims_)   Check_OCx_GPIO_Output(_tims_, OC1_GPIOx, OC1_PIN_SHIFT)
#define	Check_OC2_GPIO_Output(_tims_)   Check_OCx_GPIO_Output(_tims_, OC2_GPIOx, OC2_PIN_SHIFT)
#define	Check_OC3_GPIO_Output(_tims_)   Check_OCx_GPIO_Output(_tims_, OC3_GPIOx, OC3_PIN_SHIFT)
#define	Check_OC4_GPIO_Output(_tims_)   Check_OCx_GPIO_Output(_tims_, OC4_GPIOx, OC4_PIN_SHIFT)

Functions
void	TIM_Simulation (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	TIMx_Count (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	Overflow_Check (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	call_IRQHandller (TIM_TypeDef *TIMx)
void	Channels_Simulation (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	CC_PWM_Ch1_Simulation (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	CC_PWM_Ch2_Simulation (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	CC_PWM_Ch3_Simulation (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	CC_PWM_Ch4_Simulation (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	Write_OC_to_GPIO (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	Write_OC_to_TRGO (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	Slave_Mode_Check_Source (TIM_TypeDef *TIMx, struct TIM_Sim *TIMS)
void	Simulate_TIMs (void)
void	TIM_SIM_DEINIT (void)
